Acquisition of license to manufacture batch mills A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically

Development of the first continuous agitator bead mill Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.

Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.

In 2015, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.

The Development In 2019, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.

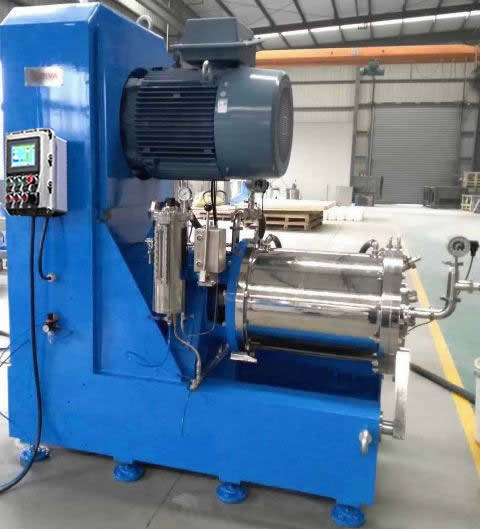

NMP400L磷酸鐵鋰專用棒銷砂磨機的技術優點:
1.聚氨酯棒銷+特耐磨高密度碳化硅研磨內桶配置,超高性價格比,售后成本約是全陶瓷砂磨機的1/5,高密度聚氨酯材料原料,耐磨、耐溫;
2.開發不易堵料系統:采用意大利高精度動態分離器,內置超聲波分離技術,使粘附在分離器縫隙上或卡滯在縫隙上的物料、鋯球、雜質在線動態被清理,保證了漿料流速的通暢。
3.自動補償式雙端面機械密封:采用機械密封特有的自動補償技術,大大保證了機器穩定運行和不停機狀態對機械密封的養護,陶瓷和合金動靜環,使用壽命更長。
4.確保整機穩定性高。
5.針對磷酸鐵鋰電池材料開發的上海諾研3.0版操作系統,可支持本地、遠程操作,可手動、自動模式、一鍵式啟動、配方模式、功耗模式,最準確的保證最終研磨產品品質、粒度分布、效率的一致性。
技術術數據:
|
研磨筒結構 |
轉子材質 |
研磨軸 |
分離系統(mm) |
研磨筒體內襯材質 |
軸密封 |
研磨介質 |
|
|
|
|
|
|
|
|
Volume 桶容積(L) |
Production volume 加工批量(L) |
Speed 轉速((r/min) |
Power 驅動功率(kw) |
Fineness 細度(nm) |
Length 長度(mm) |
Width 寬度(mm) |
Height 高度(mm) |
Weight 重量(kg) |
|
480
|
≥5000
|
150-300
|
350-400
|
D50≤50
|
3500
|
1300
|
2950
|
10000 |
